This guide is intended to help walk you through the steps of establishing the prerequisites and deploying Quicklaunch Ultimate Edition









Preparation and Initial Installation







Prior to Installing quicklaunch

  • In a corporate environment a “Meeting Room” domain account should be set up for the machine and
  • IF the meeting room is to be configured in Lockdown mode the “Meeting” room account will require local administration rights on the target machine to enable lockdown mode.
  • If Quicklaunch is to be restarted on reboot the Meeting Room account on the target machine will need to be configured to log on automatically; and Auto Start will need to be turned on in Quicklaunch System Settings.




  • Any Peripherals; Cameras, Displays, Microphones to be used with Quicklaunch should be connected to the client computer and drivers installed and configured.




  • All productivity and collaboration software that Quicklaunch will be using should be preinstalled•(UE) Both Outlook and Skype for Business client software should be preinstalled and configured on the target machine. The Wizard will use information from both of these applications to make installation easier.




  • A Quicklaunch license key must be acquired and available at the time of installation
  • The Outlook  user name and password Need to be Available if you are adding the calendar action tile
  • Ensure Download Site is not Blocked By Firewall, Proxies etc.
  • Download & Install Quicklaunch





Configuration Wizard



Language



Prerequisites



Agreement




License

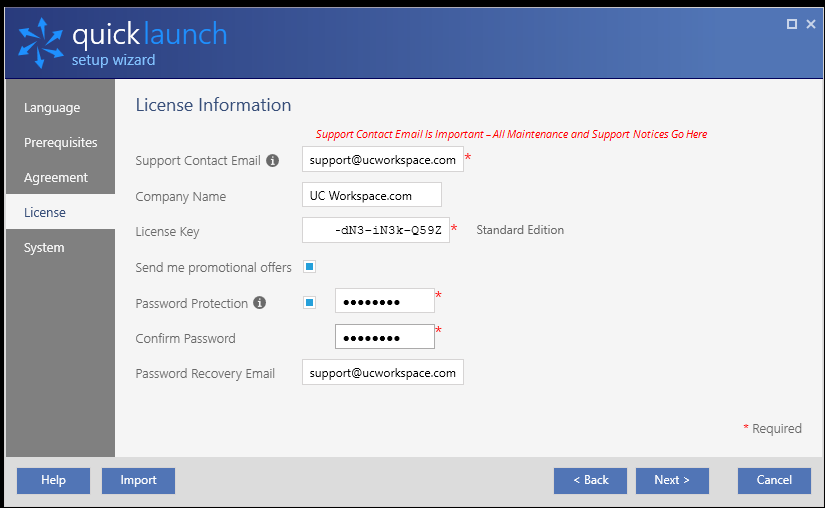

  • On the License screen of the wizard that you will need to enter both you support and password recovery email addresses
  • Password protection here enables access control to Design Mode and Setting within the Quicklaunch application
  • Your license Key will usually be keyed to your Company Name and is case sensitive




Design Mode




  • At the completion of the Configuration Wizard, Quicklaunch will open in the Design Mode

















Steps to add quickshare to your applications:

Enter settings mode by clicking the gear icon in the top-right corner of the quicklaunch application or use (ctrl-alt-s) shortcut

Click Actions, Select Group you would like -

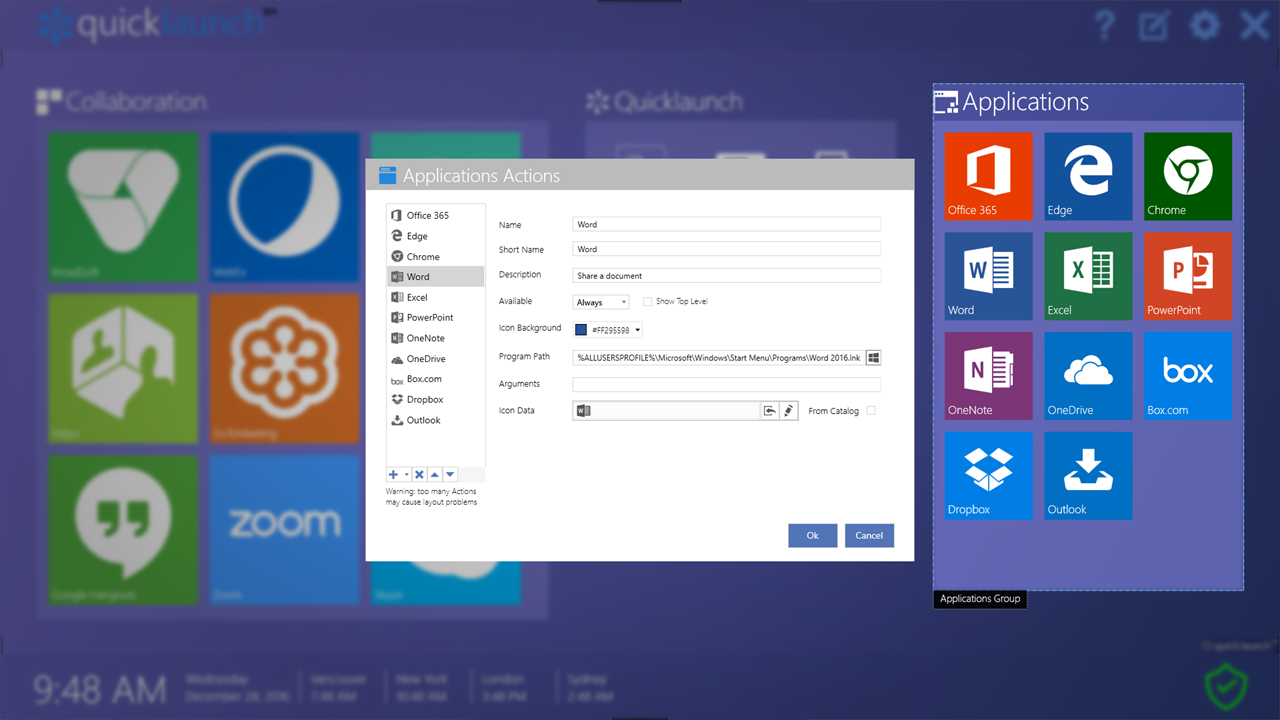

Click the Add icon in the lower left corner of the 'Applications Actions' scree

Type in Quickshare, Select Quickshare

Select 'save'



  • Optional Add Wireless Application  (Requires 3rd Party Application)


Mersive Solstice Instructions

Intel Unite Varies by PC Vendor Please see their instructions. There is an action tile in the Application Catalog




Settings



  • Configure Displays


Configure Display(s)

Enter settings mode by clicking the gear icon in the top-right corner of the quicklaunch application or use (ctrl-alt-s) shortcut

Select Display, Select - Fullscreen  add the display(s) where you want Quicklaunch to run

Select Docked - Choose what screen quicklaunch docs on and where

Select 'Save'





  • Optional - In-Room Monitoring

Set the appropriate variables for your environment - Most customers leave the default settings.


Monitoring

Enter settings mode by clicking the gear icon in the top-right corner of the quicklaunch application or use (ctrl-alt-s) shortcut

Select System, Select - Monitors

Adjust as required

Select 'Save'



  • Configure Security and Room Reset

Security

Enter settings mode by clicking the gear icon in the top-right corner of the quicklaunch application or use (ctrl-alt-s) shortcut

Select System, Select - Reset Room

Adjust as required

Select 'Save'



Reset Room on Inactivity? – If Quicklaunch™ is left unattended without activity for the specified number of minutes, you can have it automatically reset.

Reset Room Confirm Timeout – When displaying the Inactivity Timeout notification, show a timer for this number of seconds before automatically proceeding.

Reset Room on Meeting End? – If a scheduled meeting ends, Quicklaunch™ will prompt to reset the room once the meeting schedule passes. If you do not respond before the timer expires, the room is automatically reset.

Auto Close Applications? – All running applications will be closed when Quicklaunch™ does a Reset Room, but you can specify applications you wish to leave running by specifying them in this list.

Auto Delete? – In addition to closing applications, you can specify certain categories of data files that will automatically be deleted.

Enable Lockdown Mode

Block Task Manager Use



Camera Settings and Quickshare



  • Configure Camera (Requires Supported Camera)


Click on the Camera Action Tile

Click on the 'Gear Icon'

Choose the Supported Camera from the Device List

Select Close




Configure  Quickshare

Click on Quickshare Action Tile

Choose Device > Available Devices > select your magewell

Choose Device > set as Default

Close Window
