System Check-in is an option to have users identify themselves before using Quicklaunch.


Content:

1. How to Configure System Check-in

2. How to Configure Reporting for System Check-in

3. How to Configure Azure Active Directory and System Check-in (MFA)

4. How to lock Quicklaunch


1. How to Configure System Check-in

Enable System Check-in.

System Check In: Is located in Settings > Account > System Check-in.


Select Check-in Type.


There are four ways to setup your System Check-in password:

  • Check-In Code:
    • This option allows you to create your own password.
  • Exchange Web Services (EWS):
    • This Option allows you to enter your Exchange Information as your username and password to enter Quicklaunch. You can configure more domains in the Quicklaunch settings at Account > Login
  • Azure Active Directory:
    • This Option allows you to enter your domain account information to enter Quicklaunch. It also allows you to enter a Default Check-In Domain.
    • NOTE: The default domain and any domain you use to override must be setup by the IT staff
  • On-Premises Active Directory:
    • This Option allows you to enter your domain account information to enter Quicklaunch. It also allows you to enter a Default Check-In Domain.
    • NOTE: The default domain and any domain you use to override must be setup by the IT staff


Test Your Settings:

Enable ScreenSaver (Ctrl-Alt-S). Users are presented with the Quicklaunch Screen Saver.


When exiting the Quicklaunch screen saver, users will be presented with one of the following dialogs. NOTE: Keep in mind that emails and passwords are case-sensitive.

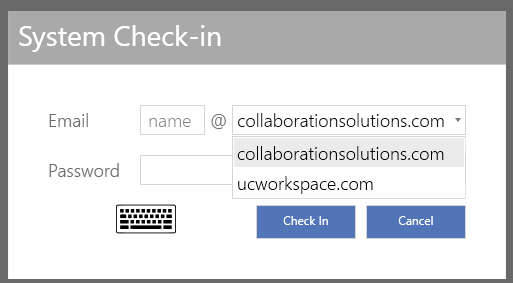

Exchange

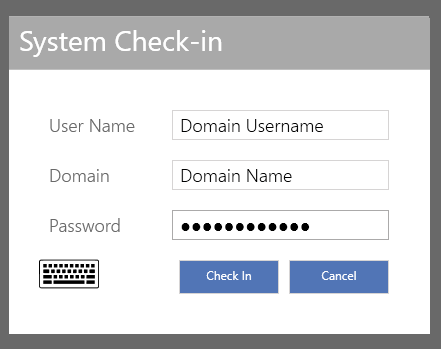

Azure or On-Prem Active Directory:

The default domain can be overridden with an appropriate domain configured by the customer.

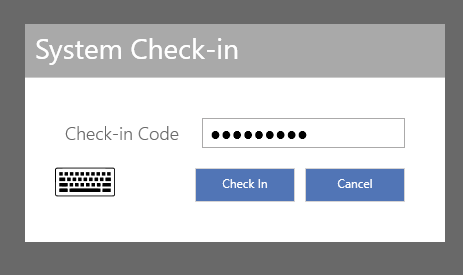

Check-In Code


2. How to Configure Reporting for System Check-in

System Check-in can report in different ways. First, enter Quicklaunch settings by selecting CTRL-ALT-S on your keyboard and navigate to Account > System Check-in


Ensure System Check-in is enabled.


Next, navigate to Reporting tab and select "System Check in" to configure System Check-in Settings.



Configure the Report to Send at Regular Intervals



  • Select the frequency you would like the report sent at
  • Select whether or not you'd like the report attached as a CSV file (the report is included in the email body text by default).
  • Enter the Email you'd like the report sent to.


Send an On-Demand Report

  • Select the desired dates to be reported
  • Enter the email you'd like the report sent to
  • Select "Generate and Send" to email the report




3. How to Configure Azure Active Directory and System Check-in


This option allows you to use Microsoft Modern Authentication, including MFA for system check-in.


Register Quicklaunch System Check-In in Azure Portal. You may need to work with your IT staff to register Quicklaunch in the Azure Portal.

Here are some helpful links from Microsoft on how to generate an Application ID in Azure:

Create the Azure App Registration with the following information:


App Registration name"Quicklaunch System Check-In"
Redirect URI  - Public Client (mobile & desktop)https://login.microsoftonline.com/common/oauth2/nativeclient    - NOTE: this may be a checkbox
Redirect URI  - Public Client (mobile & desktop)urn:ietf:wg:oauth:2.0:oob
Configure for multi-tennant application this is an option that may be in the redirect URL section
PermissionsMicrosoft Graph User.Read
PermissionsGrant Consent - this will prevent every user from being asked permission when they click on system check in


Once this app registration has been setup, make sure to follow the instructions below and click "Verify".  You may be prompted for further permissions to read azure active directory.


Setup Quicklaunch System Check-In:

  • Enter Quicklaunch Settings by selecting CTRL-ALT-S on your keyboard

  • Navigate to Accounts > System Check-in
  • Enter you Application ID
  • Select Verify



  • Enter a Microsoft Work account and press Next.
  • Enter Password and press Sign in

If there is a green check-mark visible in-front of the Verify link, this has been properly configured.



Test your configuration:

  • Save your settings.
  • Select CTRL-ALT-L on your keyboard to enter the screen saver.
  • Test credentials when prompted.


4. How to Lock Quicklaunch


Quicklaunch is locked whenever the Quicklaunch Screen Saver is displayed. CTRL-ALT-L can be used to immediately display the screen saver.
