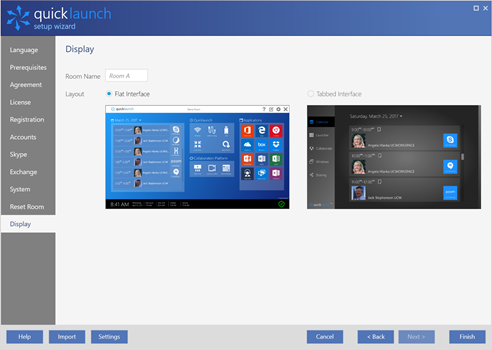

The first option is to choose between flat and tabbed mode which can be done during the install or modified after.






The next option is to choose the behaviour.  The most common configurations are outlined below.



Dynamic – when an action tile is pressed the Quicklaunch main screen moves to toolbar/dockview mode

Fixed - Quicklaunch Remains in place at all times

Pinnable – Used with Flat mode Quicklaunch has the option to be minimized

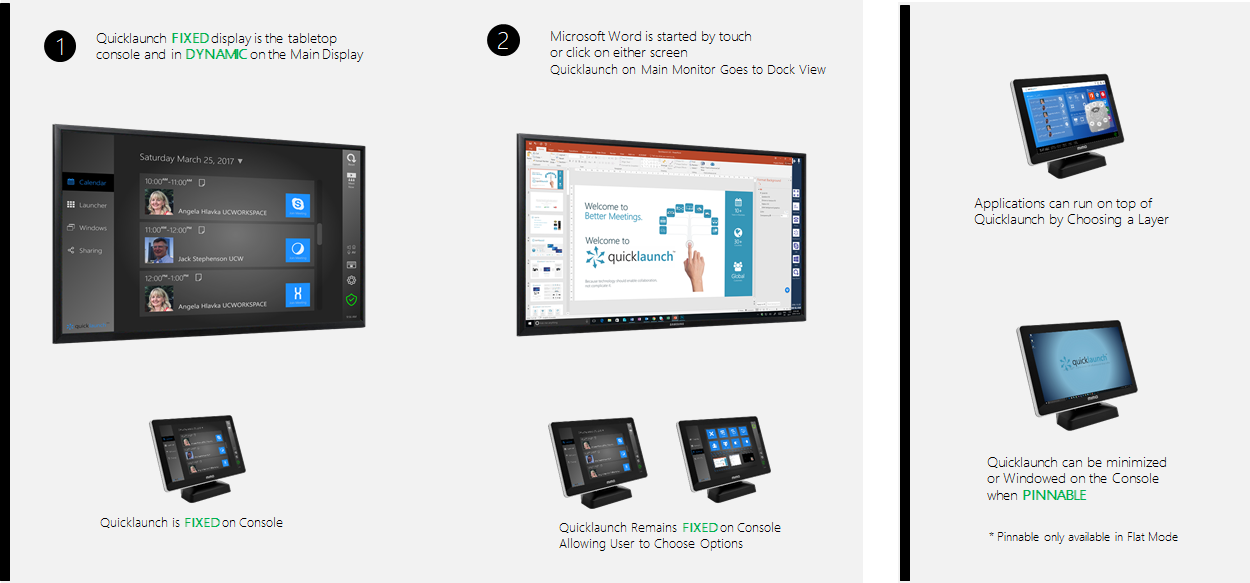

  1. Quicklaunch FIXED display is the tabletop console and in DYNAMIC on the Main Display , Quicklaunch is FIXED on Console
  2. Microsoft Word is started by touch or click on either screen, Quicklaunch on Main Monitor Goes to Dock View , Quicklaunch Remains FIXED on Console Allowing User to Choose Options



Applications can run on top of Quicklaunch by Choosing a Layer

Quicklaunch can be minimized or Windowed on the Console when PINNABLE (only available in flat mode)



If you want to use as a console that is always active in Tabbed mode (or in flat mode). Set to Fixed and Normal or Always in back if you want prompts to appear on top of the console

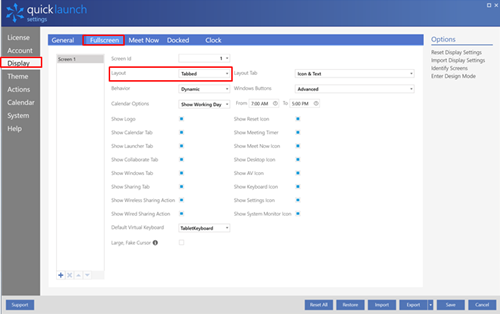

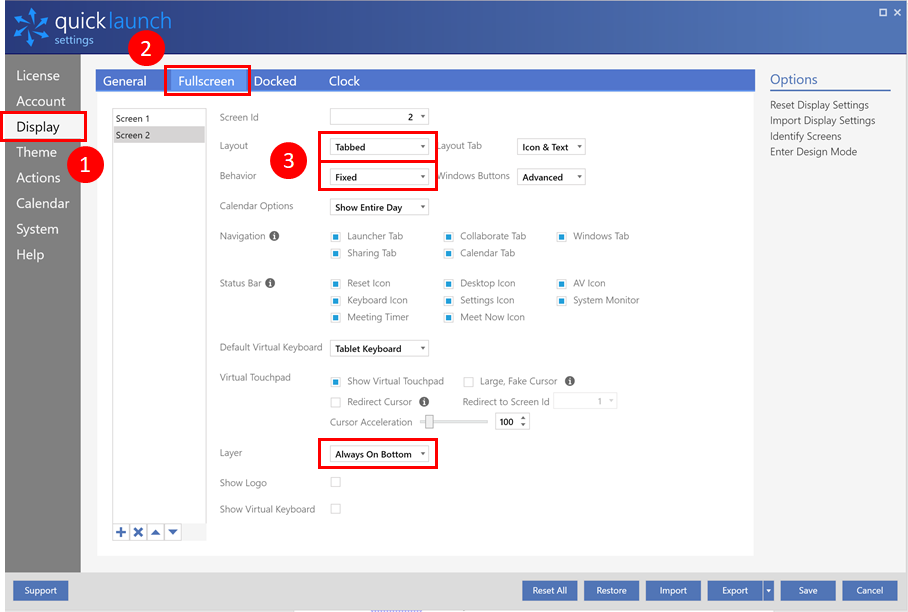

Go to setting Ctrl - Alt - S



  1. Choose Display
  2. Choose Fullscreen
  3. Set Options

Choose Layout -> Tabbed (or fixed)

Behavior -> Fixed

Layer -> Always on bottom or normal

Save





If you are using Flat mode on the console, and would like the option to be able to minimize the Quicklaunch main window you would choose pinnable.


Making a screen “Pinnable” facilitates this by keeping Quicklaunch full screen on this monitor regardless of what is happening on other monitors. Unpinning a “Pinnable” Quicklaunch screen allows it to be moved, minimized or resized just like any other desktop window. All of this can be configured in settings.



Available Button Options




The first button is the familiar minimize. It minimizes the Quicklaunch main screen and makes the entire screen of the console available for use.

The second button is “Pinnable” and this scales the Quicklaunch main screen to a preset size so that it may be dragged to whatever position on the screen is most desired. This button is also used to restore Quicklaunch to full screen.


Go to setting Ctrl - Alt - S

  1. Choose Display
  2. Choose Fullscreen
  3. Set Options

Choose Layout -> Flat

Behavior -> Fixed

Layer -> Always on bottom or normal

Save



 More on Pinnable Mode
